PEROLO DN50 X DN80 ATCO BALL VALVE (2" X 3")

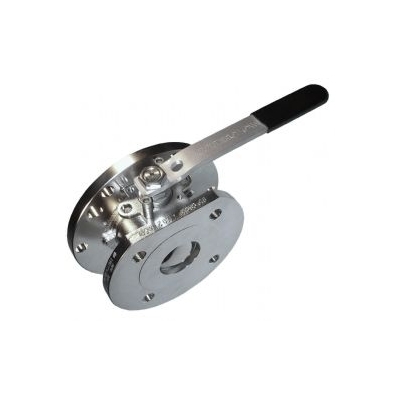

PEROLO DN50 X DN80 ATCO BALL VALVE (2" X 3")

Our Price: $929.25

Product Code: BVFFD5X8-BF64-SS-01

Qty:

Description

Sheet Information

MPN: AHN5X16T1300S00

- With 6x14 non equi-spaced on PCD168 container side

- Inlet flange drilling: 4x18 on PCD160

- Outlet flange drilling:4 slotted x 18 x min PCD114mm

- With sealing

- Without gauge connection

- Without gauge protection

- Without steam heating

- Material: 316L Stainless Steel

- Weight: 6.85 kg / 15.1 lbs

The PEROLO ATCO™ 3”- 2'' ball valve is designed to be installed on a 3” flange to be used as an air inlet/outlet valve.
